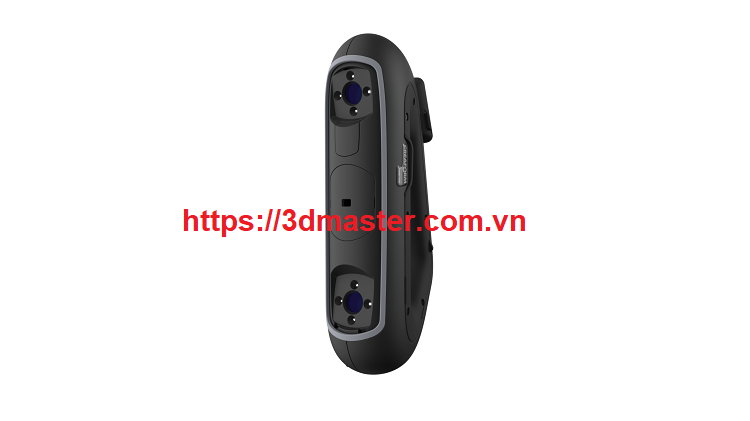

Creaform HandySCAN PRO 3D Scanner: A Solution for Recreating Parts Without Original Drawings

Lost drawings, discontinued spare parts, or components worn over time can push maintenance into a completely reactive state. Every downtime incident means rising costs, disrupted schedules, and dependence on external supply chains. In this context, the Creaform HandySCAN PRO 3D scanning solution offers a new approach - capturing real-world data directly from existing objects, enabling more proactive and accurate part reconstruction.

1. Faro Creaform HandySCAN PRO – Digitizing Components for Manufacturing

The Creaform HandySCAN PRO is a handheld 3D scanner designed for high-precision industrial metrology applications, particularly reverse engineering, quality control (QC), and technical data digitization.

The device is developed by Creaform (Canada), a well-known brand in industrial 3D measurement, currently part of the FARO ecosystem.

Technical specifications of Creaform HandySCAN PRO:

Technology: Blue Laser Technology
Measurement / scan size: Unlimited (suitable for both small and large parts)
Accuracy: ~0.030 mm
Point cloud resolution: 0.030 mm
Scanning speed: 1,200,000 measurements/second
Laser class: Class 2M (eye-safe)
Laser configuration: 23 blue laser crosses
Operating capability: Stable even in industrial vibration conditions
Weight: ~0.92 kg (portable, highly flexible)
Surface capability: Effective on reflective surfaces, black metals, and shiny stainless steel without requiring scanning spray

Today, this device plays a critical role in product design and development (R&D), while also being widely applied in maintenance and recreation of parts without original drawings—especially in long-operating industrial systems or imported equipment lacking technical documentation.

2. Practical Workflow of Using Creaform HandySCAN PRO for Part Reconstruction

Step 1: Data acquisition using Creaform HandySCAN PRO
The scanner captures real-world components directly on-site. Data is collected as a high-density point cloud, accurately recording full geometry—including complex curved surfaces and worn features.

Step 2: Data processing and 3D mesh generation
Scan data is processed using dedicated software such as VXelements (Creaform) and VXmodel to:

Remove noise, outliers, and redundant data
Optimize mesh structure (triangulation), improving smoothness and geometric accuracy
Standardize the 3D model for design applications

Step 3: Reverse Engineering → CAD modeling
From the mesh model, engineers reconstruct a CAD model using software like Geomagic Design X or VXmodel within the Creaform / FARO ecosystem. This is a crucial step to convert real-world data into manufacturable engineering drawings.

Faro Creaform HandySCAN BLACK+ (like new 90%) giảm giá 60%

Máy quét 3D cầm tay Creaform HandySCAN BLACK chính xác nhất thế giới

Faro Creaform HandySCAN PRO™

Giải pháp quét 3D tối ưu cho phát triển sản phẩm và thiết kế ngược

Faro Creaform HandySCAN EVO|Elite™

Máy quét 3D cầm tay tối ưu nhất thế giới

Faro Creaform HandySCAN SILVER|Elite

Máy quét 3D cầm tay laser xanh chính xác giá nét

Faro Creaform MetraSCAN BLACK+™|Elite

Máy quét 3D đa năng, cơ động, tốc độ cao cấp chính xác đo lường

Step 4: Manufacturing / 3D printing / sourcing
The CAD model is then used for actual production:

CNC machining: Converts CAD into high-precision physical parts for industrial use
3D printing (rapid prototyping): Used to validate form, fit, and assembly before mass production
Mass production: Scaled manufacturing after design validation and optimization

Step 5: Inspection and deviation analysis
3D scan data is compared directly with the CAD model to evaluate accuracy before operation or large-scale production:

Tolerance inspection: Ensures actual dimensions fall within acceptable limits (typically ±0.01 mm to ±0.05 mm for precision parts)
Geometric deviation detection: Identifies warping, deformation, or misalignment
Quality assurance: Confirms parts meet technical standards before assembly or use

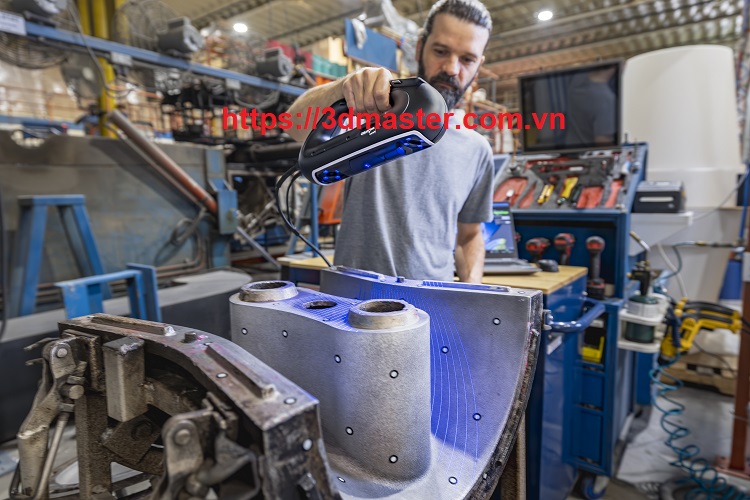

On-site 3D data acquisition process in industrial environments

3. Applications and Role of 3D Scanning in Plant Maintenance

Creaform HandySCAN PRO is not just a measurement tool—it has become a core solution in modern MRO (Maintenance, Repair, and Operations) strategies, enabling greater operational autonomy.

Heavy industrial maintenance: Turbines, large pumps, shafts, bearings with worn parts and no original drawings
Automotive & motorcycle industry: Reverse engineering rare parts, recreating discontinued components, inspecting body panels and stamping molds
Imported equipment without documentation: Machines from Japan, Korea, Europe lacking OEM support can be digitized for repair and reproduction
Aging production lines: Reconstructing mechanical parts that have been replaced multiple times, causing dimensional inconsistencies
Hard-to-source OEM parts: Local 3D scanning enables in-house reproduction, reducing reliance on global supply chains
Emergency repairs: Rapid on-site scanning to rebuild models and manufacture replacements quickly
Standardizing inconsistent components: Digitizing all parts to unify design across production lines
Restoring deformed mechanical components: Reconstructing original geometry to ensure proper assembly

3D scanning technology supporting maintenance and part reconstruction in heavy industry

4. Benefits of HandySCAN PRO Compared to Traditional Methods

In modern industrial production, traditional measurement and reconstruction methods reveal significant limitations in speed, flexibility, and ability to handle complex geometries.

By contrast, 3D scanning technology like Creaform HandySCAN PRO introduces a fundamentally different approach—streamlining workflows, reducing reliance on original drawings, and improving accuracy across the design–manufacturing–inspection chain.

Criteria	HandySCAN PRO	Manual / CMM Measurement	OEM Ordering	Standard 3D Scanners
Accuracy	Very high (~0.030 mm)	High (CMM), low (manual)	OEM-dependent	متوسط
Speed	Fast (millions of points/sec)	Slow (point-by-point)	Very slow (production lead time)	Fast
Complex geometry	Excellent (freeform surfaces)	Limited	Not applicable	Limited
CAD reconstruction	Highly accurate, production-ready	Difficult / time-consuming	Available if OEM exists	Not accurate enough
Flexibility	High (portable, on-site)	Low (fixed setup)	Not flexible	Medium
Long-term cost	Optimized (high ROI)	Labor-intensive	Expensive	Low but limited
Downtime impact	Significantly reduced	Increased	Very high	Moderate
Production application	Direct	Mainly inspection	External dependency	Simulation / trial

5. Where to Buy Creaform HandySCAN PRO 3D Scanner? – 3D MASTER

To ensure genuine equipment, metrology-grade accuracy, and effective deployment in real manufacturing environments, businesses should choose a capable and experienced 3D solution provider.

3D MASTER Co., Ltd. is an official Creaform distributor with over 10 years of experience in Vietnam, specializing in 3D scanning, 3D printing, and comprehensive 3D technology solutions. The company has supported numerous factories domestically and internationally.

Supply genuine Creaform 3D scanners with full configurations and certifications
Provide tailored consulting for reverse engineering, QC, maintenance, and production
Offer live demos to evaluate effectiveness before investment
Deliver training for scanning operation and data processing
Support full workflow implementation: scan → CAD → manufacturing in real factory environments

Creaform HandySCAN PRO is not only a high-precision 3D measurement device but also a comprehensive solution that enables businesses to digitize technical data, shorten design–manufacturing–inspection cycles, and effectively solve the challenge of recreating parts without original drawings. It is becoming a critical component in the digital transformation strategy of modern factories.
