3D Scan of industrial fans at TH True Milk

TH True Milk has the main requirements:

Deformation test of all types of industrial wind vanes at cattle farms to evaluate improvements to increase the wind aerodynamic performance of the fan, optimize consumable costs
New design and manufacture of industrial wind turbine blades in the direction of improvement to save time on oiling and maintenance during 24/24 operation
Challenges

Although their technical methods have worked well over the years, they are very slow. Estimates are often highly inaccurate due to manual work and the difficulty of the geometric complexity  of the propellers.
Solution
TH True Milk has contacted 3D MASTER to cooperate with the above requirements.

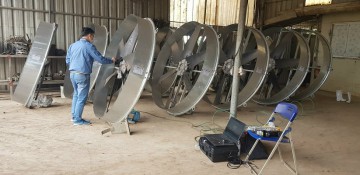

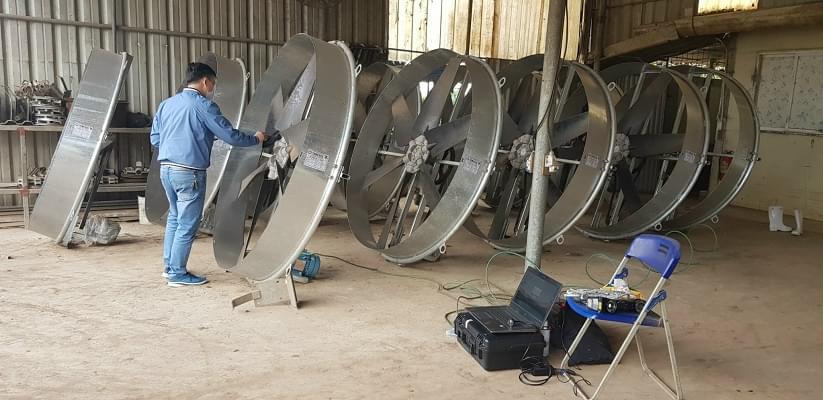

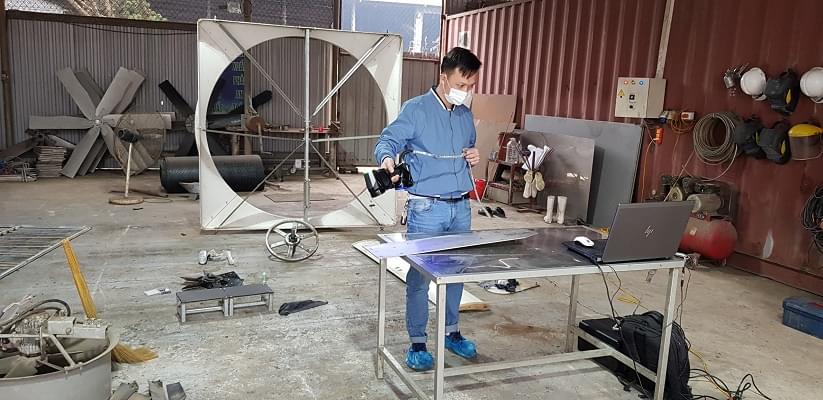

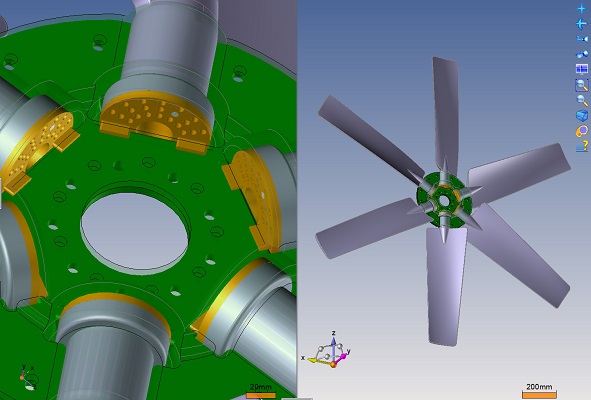

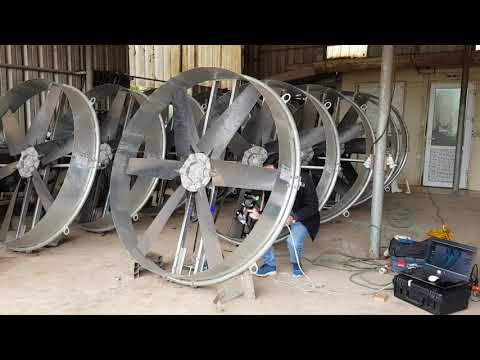

3D MASTER uses a high-end handheld laser 3D scanner model HandySCAN Black Elite very mobile with high precision to perform a comprehensive 3D scan of the propeller, combined with the use of VXinspect software to export deformation reports and using Geomagic software DesignX processed the 3D reverse engineering of the entire original industrial wind turbine assembly assembly from 3D scan data. Then make a successful design improvement according to the new requirements of TH True Milk engineers.
