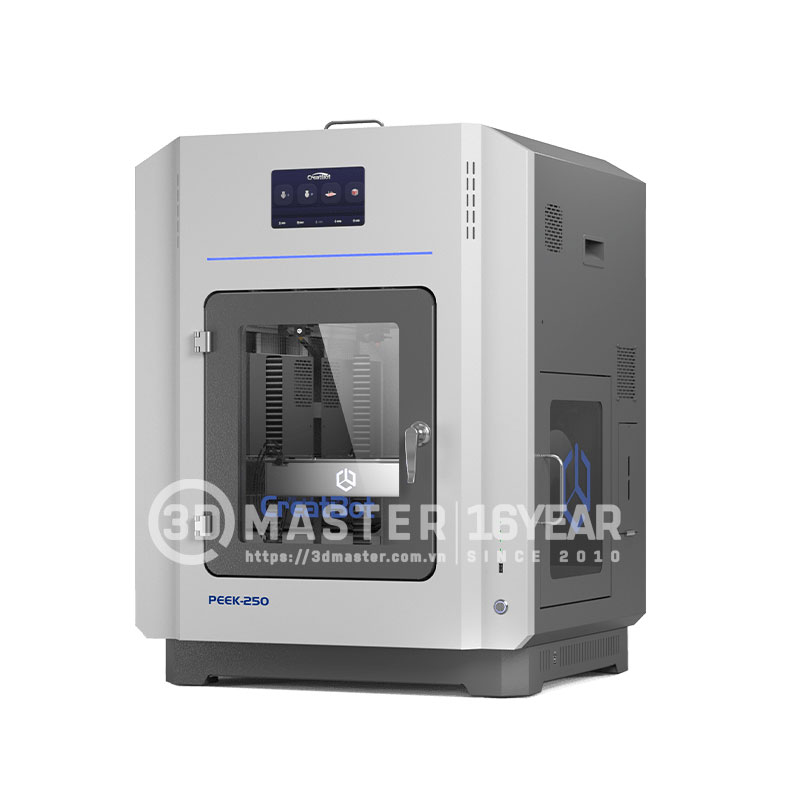

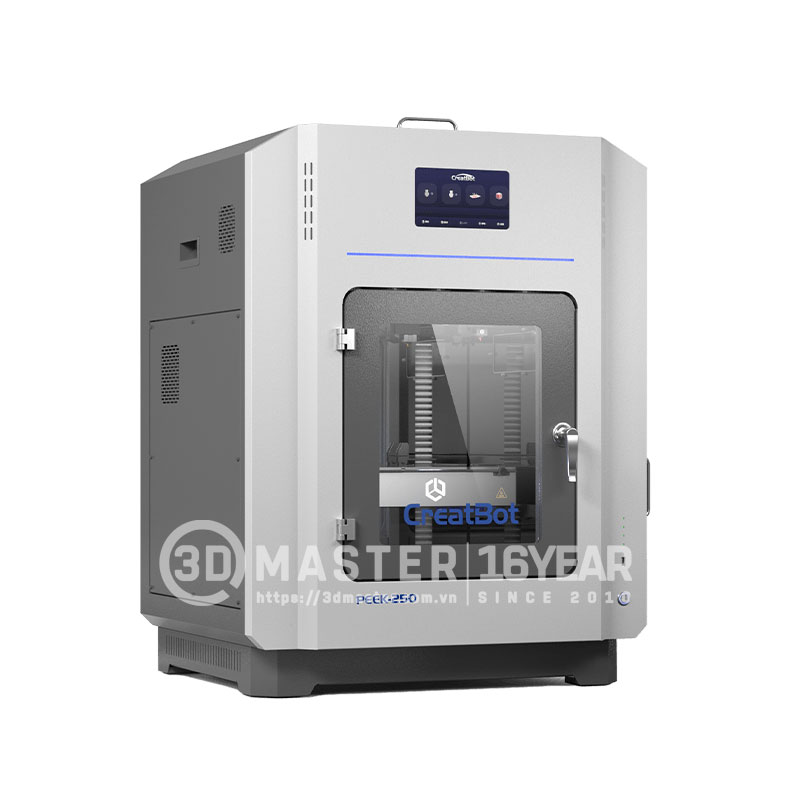

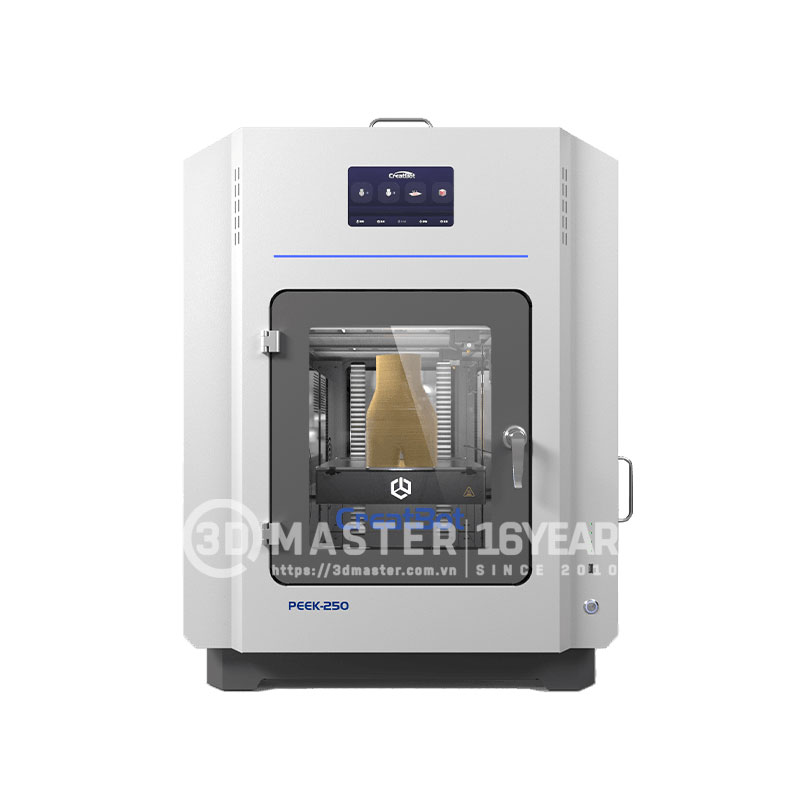

CreatBot PEEK-250 3D Printer

CreatBot PEEK-250 3D Printer – High-Performance Industrial 3D Printing Solution

The CreatBot PEEK-250 is a next-generation industrial 3D printer engineered to optimize the processing of high-performance engineering materials such as PEEK and PEI (Ultem) under strictly controlled thermal conditions.

Despite its compact footprint, the system integrates an advanced heated chamber reaching up to 200°C, ensuring consistent print quality and exceptional stability. It is an ideal solution for both manufacturing applications and advanced research environments.

Why Is a 180°C Heated Chamber Critical?

A chamber temperature of 180°C is essential for the annealing of PEEK materials, significantly enhancing mechanical strength and structural stability after printing. This capability enables in-situ heat treatment without removing the part from the printer.

Key Benefits:

• No Need to Remove Printed Parts
  Parts remain on the build plate, preserving adhesion and minimizing deformation or warping at the base during post-processing.
• Prevents Thermal Shock
  Eliminates the need for cooling and external handling, reducing sudden temperature fluctuations that can cause internal stress and cracking.
• In-Situ Annealing Process
  Supports automated thermal cycles directly inside the printer, for example:
  • Maintain 180°C for 5 hours
  • Followed by 120°C for 5 hours
    → Ensures complete and controlled annealing.

Result: PEEK parts achieve higher strength, improved reliability, and enhanced long-term performance.

180°C – The Key Temperature for PEI Printing

Maintaining a chamber temperature of 180°C is also considered optimal for PEI (Ultem) printing. It ensures:

• Stable material flow
• Strong interlayer adhesion
• Reduced risk of defects during the printing process

Key Features of the CreatBot PEEK-250

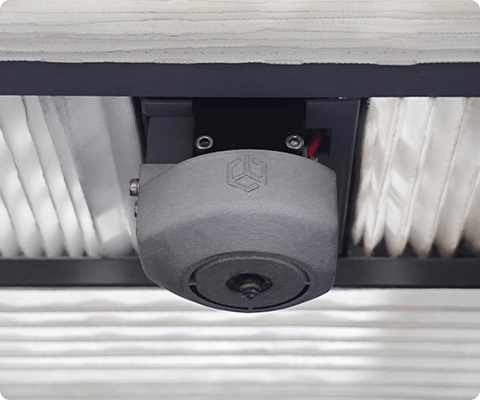

Ultra-High Temperature Extrusion System

The printer is equipped with an advanced extrusion system capable of handling extremely high temperatures, enabling precise printing of high-performance polymers.

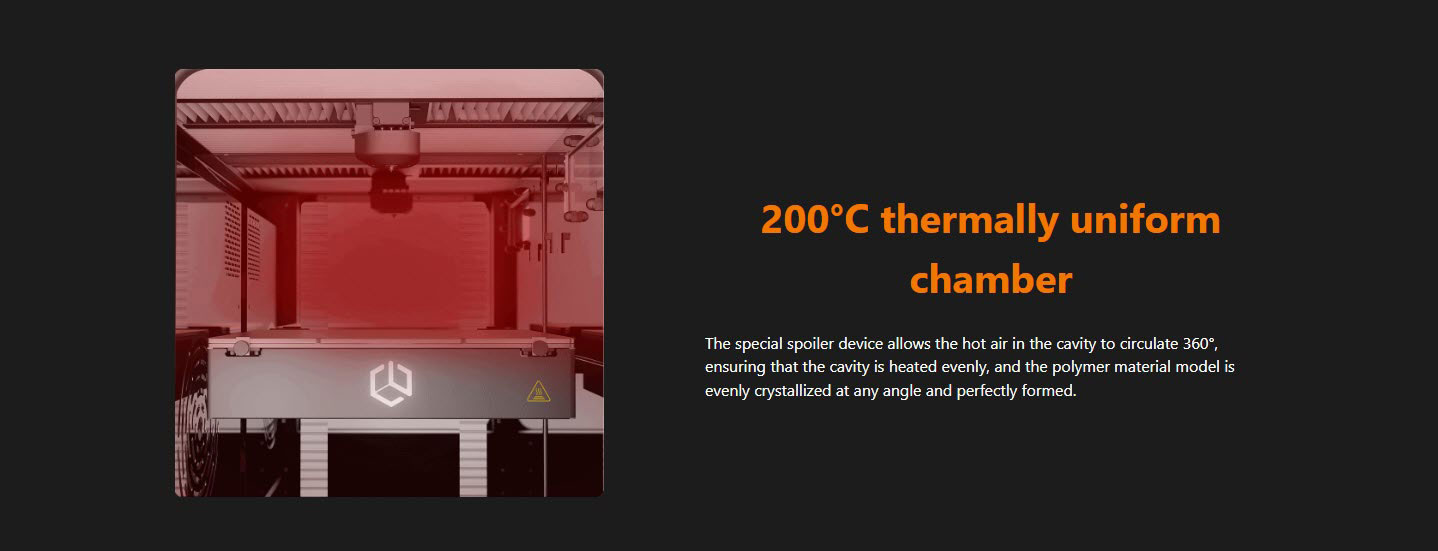

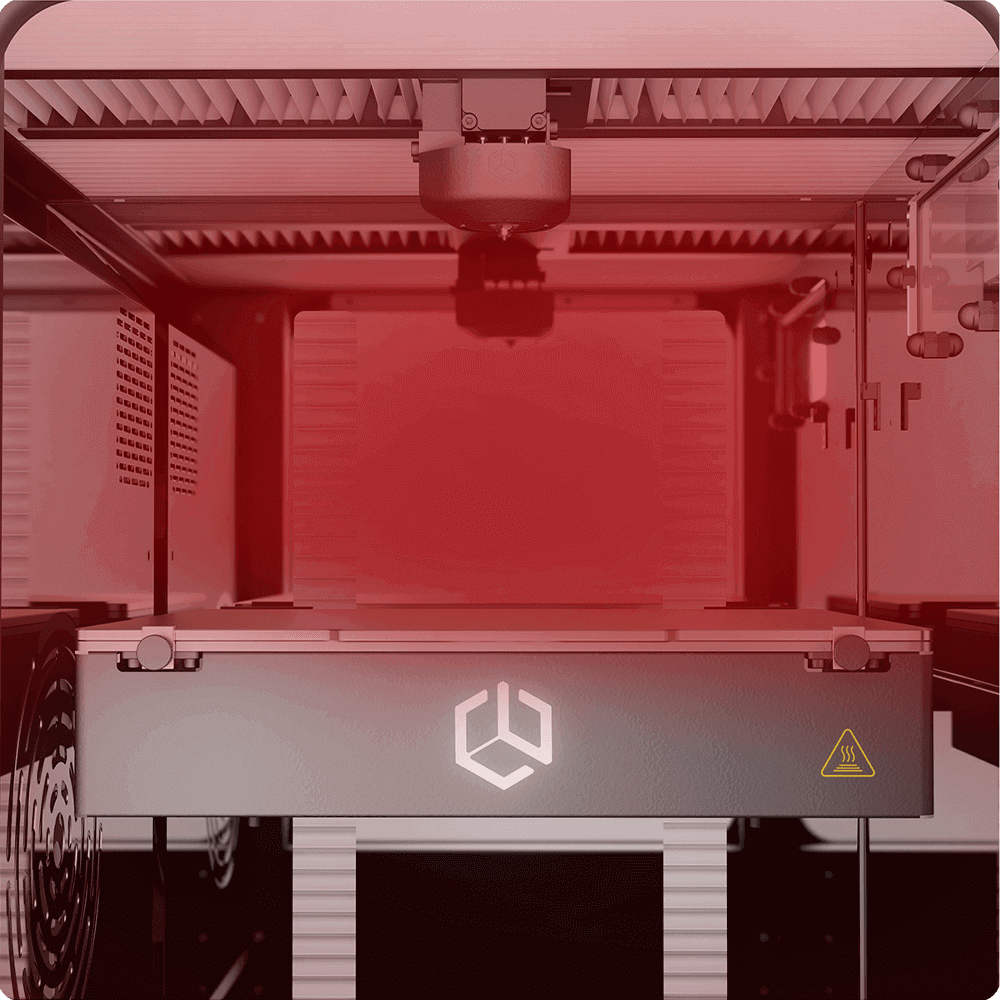

Stable Heated Chamber up to 200°C

A fully enclosed and thermally stable chamber ensures optimal conditions for engineering-grade materials.

Insulated Build Chamber for Safe Operation

The insulated chamber design enhances operator safety while maintaining consistent internal temperatures.

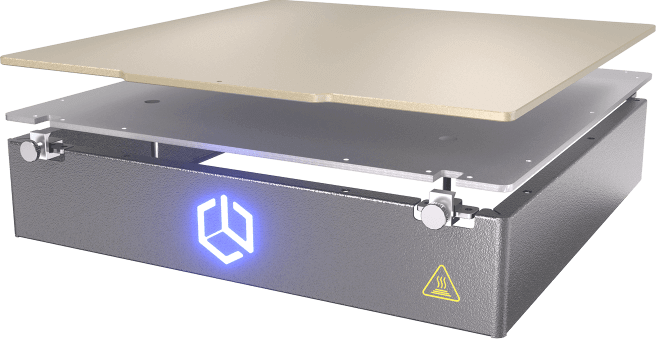

High-Temperature Build Plate up to 200°C

The build plate supports temperatures up to 200°C, ensuring excellent first-layer adhesion and print stability.

Direct Annealing Function

Integrated in-machine annealing capability allows parts to be heat-treated immediately after printing, improving efficiency and part quality.
