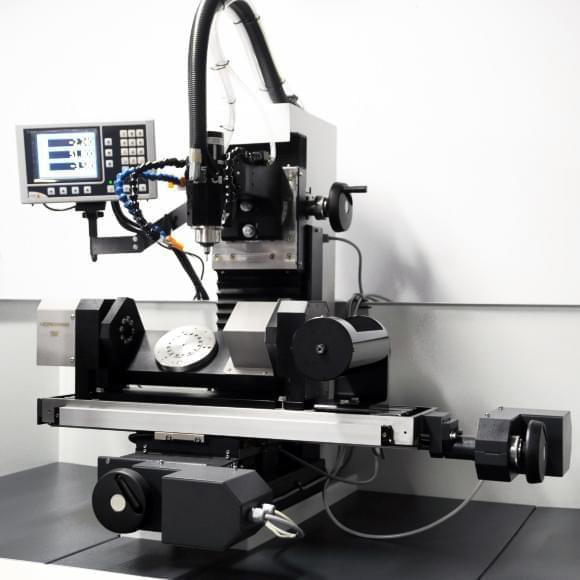

CNC 5 axis mini milling machine

  • Product code: 5 axis Milling mini
5-axis mini milling machine

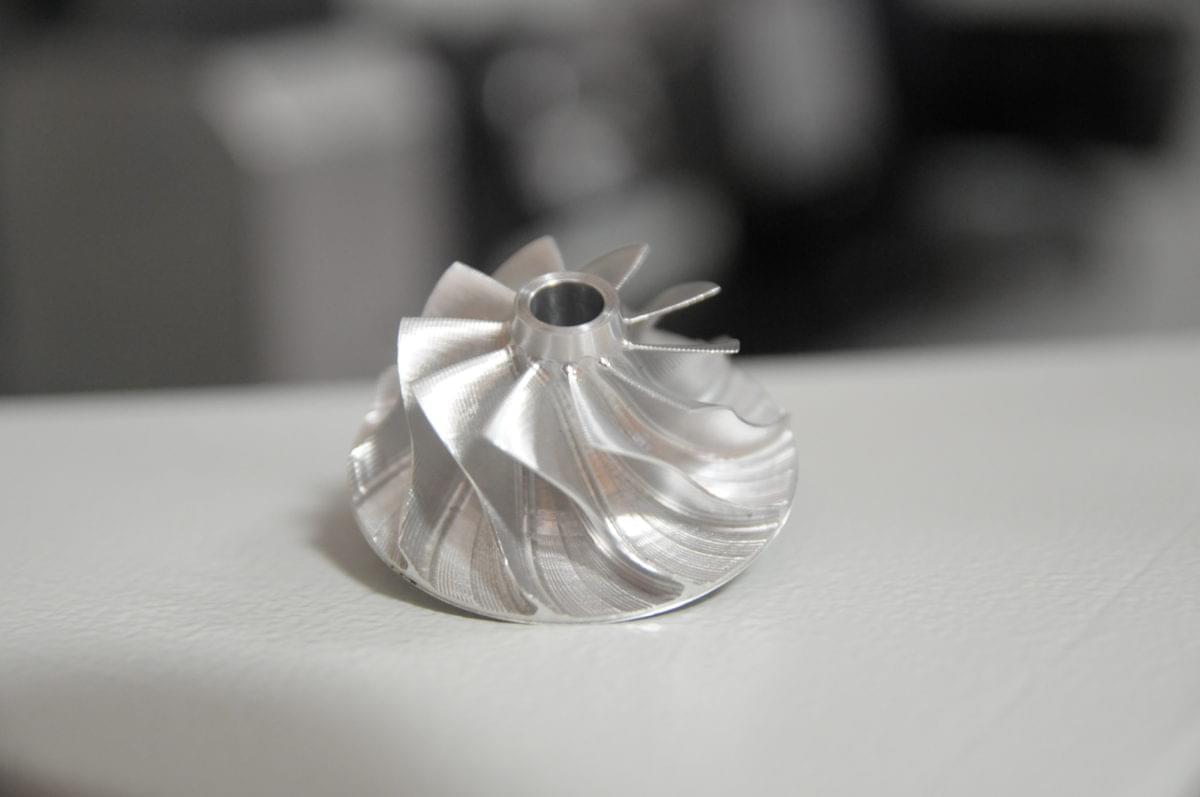

specialized in aluminum turbine blades
Made in America
Itinerary X / Y / Z: 500/200/280 mm
Axis travel A, B: A axis: + 120 ° to -105 °, B axis: ± infinity
Table size: 700x180 mm
The distance from the tool tip to the table: 65-370 mm
Spindle speed: 2000-60,000 rpm
8 automatic knife changing positions
Maximum speed of the table: 3000 mm / min
Accuracy: 2 microns
Price: Contact
5/5 (1 vote)

máy phay cnc 5 trục mini

5-axis mini milling machine
specialized in aluminum turbine blades
Made in America
Itinerary X / Y / Z: 500/200/280 mm
Axis travel A, B: A axis: + 120 ° to -105 °, B axis: ± infinity
Table size: 700x180 mm
The distance from the tool tip to the table: 65-370 mm
Spindle speed: 2000-60,000 rpm
8 automatic knife changing positions
Maximum speed of the table: 3000 mm / min
Accuracy: 2 microns
Spindle Capacity 1.1 kw
Dimensions of the machine: W950 x D700 x H870
Machine weight: 136 kg
Controller: MACH3
